Unlocking the Exquisite Working Principle of Cone Winding Machine

Sharing is caring!


In a fabric weaving factory, cone winding machines wind yarn onto cones or bobbins efficiently. The purpose of this machine is to ensure that the yarn is properly prepared before it can be used in the weaving process. The process begins by loading empty cones or bobbins into the machine. The cones can be made of plastic or cardboard, depending on the specific requirements of the weaving process. During winding, the cone winding machine applies appropriate tension to the yarn once the cones are loaded. The tensioning mechanism prevents yarn breakage and ensures uniform winding throughout the cone. Additionally, the machine is equipped with a yarn guide mechanism that evenly guides the yarn onto the cone. Tangling, overlapping, and uneven winding of the yarn can be prevented using this mechanism. Furthermore, cone winding machines incorporate a traverse mechanism that allows yarn to slide side-to-side during winding. With this mechanism, yarn is evenly distributed over the cone’s width, creating a well-wound and compact package.

In general, the cone winding machine plays an important role in the preparation of yarn in a fabric weaving factory. The winding process ensures efficient and uniform winding of the yarn onto cones or bobbins, contributing to the smooth operation of the weaving machine.

Objectives of Cone Winding Machine:

An overview of the objectives of a cone winding machine in a fabric weaving factory can be summarized as follows:

  1. Cone winding machine wind yarn onto cones or bobbins quickly and efficiently. With this technology, high productivity can be assured and downtime can be reduced through the optimization of the winding process.
  2. In the winding process, the machine applies constant tension to the yarn. Maintaining uniform tension on the cone is crucial to preventing yarn breakage and ensuring the yarn is wound tightly and evenly. In addition to reducing waste, this objective helps maintain the quality of the yarn.
  3. A cone winding machine integrates mechanisms to prevent the yarn from tangling or overlapping. The technique ensures smooth and even winding of the yarn, preventing potential issues during subsequent processes.
  4. The machine ensures precise alignment of the yarn on the cone and prevents any misalignment. In this way, uniform yarn distribution and a well-formed cone can be achieved.
  5. A cone winding machine is designed to wind large volumes of yarn at high speeds. In a fabric weaving factory, the objective is to maximize productivity by winding multiple cones simultaneously, thereby reducing production time.
  6. In quality control, cone winding machines ensure consistent winding of yarn onto cones. It helps maintain desirable yarn characteristics, such as uniformity, alignment, and tension, which are important to the final fabric’s quality.
  7. The machine minimizes yarn waste by winding yarn onto cones effectively. When winding yarns, proper tensioning, accurate placement, and avoiding tangling or overlapping reduce yarn breakage and overall waste.

An overall objective of a cone winding machine is to yield high levels of efficiency, quality, productivity, and waste reduction, all of which contribute towards the smooth running of a fabric weaving facility.

Working Principle of Cone Winding Machine:

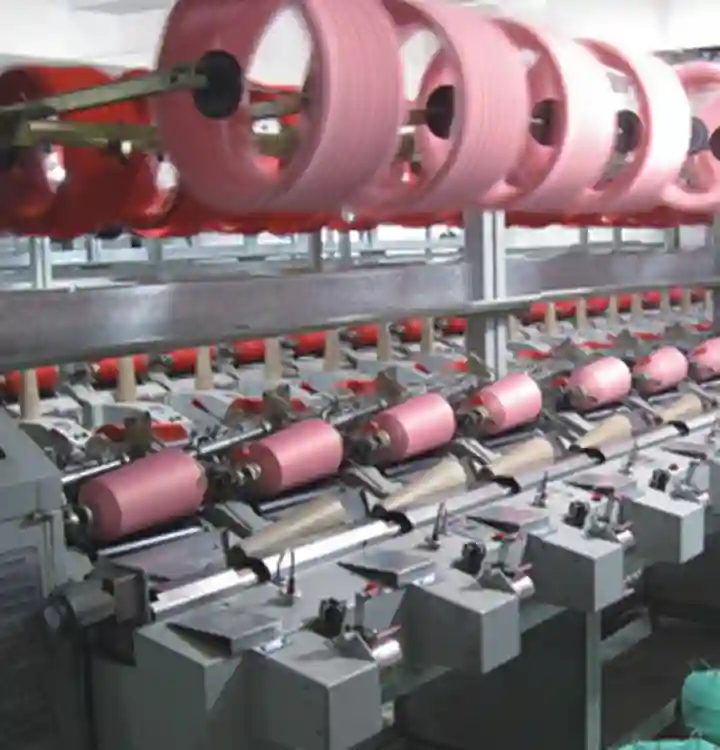

Figure 01: Cone winding machine (hank to cone)
  1. The motor pulley of the machine rotates the camshaft and drum shaft, and the motion is provided by the motor on one side of the machine.
  2. A yarn supply gets wound up on a bobbin or hank, and the yarn goes to the cone using yarn stop motion guides and yarn traversing guides.
  3. As the cones are placed on the holders and are in contact with the drum, they will rotate due to the friction between the drum and the holder and will eventually become wound on the yarn cone due to the friction.
  4. In this type of winding, yarn guides control the winding process.
  5. When there is a breakage in the yarn, the winding is stopped with a stop motion mechanism.
  6. As soon as the cone reaches the predetermined width, it will be discretely removed from the drum and contacted automatically, and the new cone will be placed by taking it out of the existing cone.

Advantage and Disadvantage of Cone Winding Machine:

Cone winding machines play an important role in the textile industry, particularly in fabric weaving factories. These machines are essential to ensuring that yarn is wound onto cones or bobbins in order to produce high-quality fabrics. However, cone winding machines also have advantages and disadvantages, just like any technology or machine. Let us explore them in more detail in the following:

Advantage of Cone Winding Machine:

  1. Increased Efficiency: A cone winding machine improves the efficiency of the yarn winding process significantly. In addition to handling large amounts of yarn, they wind them at high speeds, increasing productivity and speeding up production.
  2. Consistent Yarn Quality: By ensuring uniform tension and precise yarn placement during winding, these machines ensure consistent yarn quality. Providing high-quality fabrics with minimal variations in yarn properties is made possible by this consistency.
  3. Waste Reduction: Through cone winding, yarn is prevented from tangling, overlapping, and breaking. By controlling tension and placement precisely, yarn damage is reduced, resulting in less waste and reduced costs.
  4. Ease Operation: A cone winding machine is designed to be user-friendly, with intuitive controls and automated features. Sensors and mechanisms monitor and adjust tension, traverse movement, and yarn guidance, making the process simpler and reducing the possibility of human error.
  5. Versatility: The cone winding machines can wind yarn in a variety of materials, thicknesses, and colors. By winding different yarn types onto cones or bobbins, the fabric weaving factory can meet the needs of different production runs.

Disadvantage of Cone Winding Machine:

  1. Initial Investment: The cost of cone winding machines can be high, especially when they are high-speed and automated. It might be difficult for small-scale fabric weaving factories to afford the initial investment necessary to acquire and install machinery.
  2. Maintenance and Repair: It is important to maintain cone winding machines regularly to ensure optimal performance. In order to maintain efficiency and prevent downtime, maintenance tasks such as cleaning, lubricating, and calibrating are essential. If mechanical or electrical components fail, they may need to be repaired or replaced.
  3. Limited to Cone Winding: The cone winding machine is specifically designed for winding yarn onto cones or bobbins. Their use is limited to a specific stage in the yarn production process, since they may not be suitable for other winding or packaging methods.
  4. Operator Skill and Training: Training and expertise are required to operate cone winding machines effectively. For smooth operation and to minimize errors or accidents, operators must understand the machine’s functions, settings, and troubleshooting techniques.
  5. Space Requirement: Cone winding machines are often large and require dedicated space in fabric weaving factories. It is important to consider whether there is enough floor space available to install and operate the equipment.


While cone winding machines offer many advantages in terms of efficiency, quality, and waste reduction, you should carefully consider the initial investment, the maintenance requirements, and the specialized training required for its operation before implementing this equipment into a fabric weaving facility.
